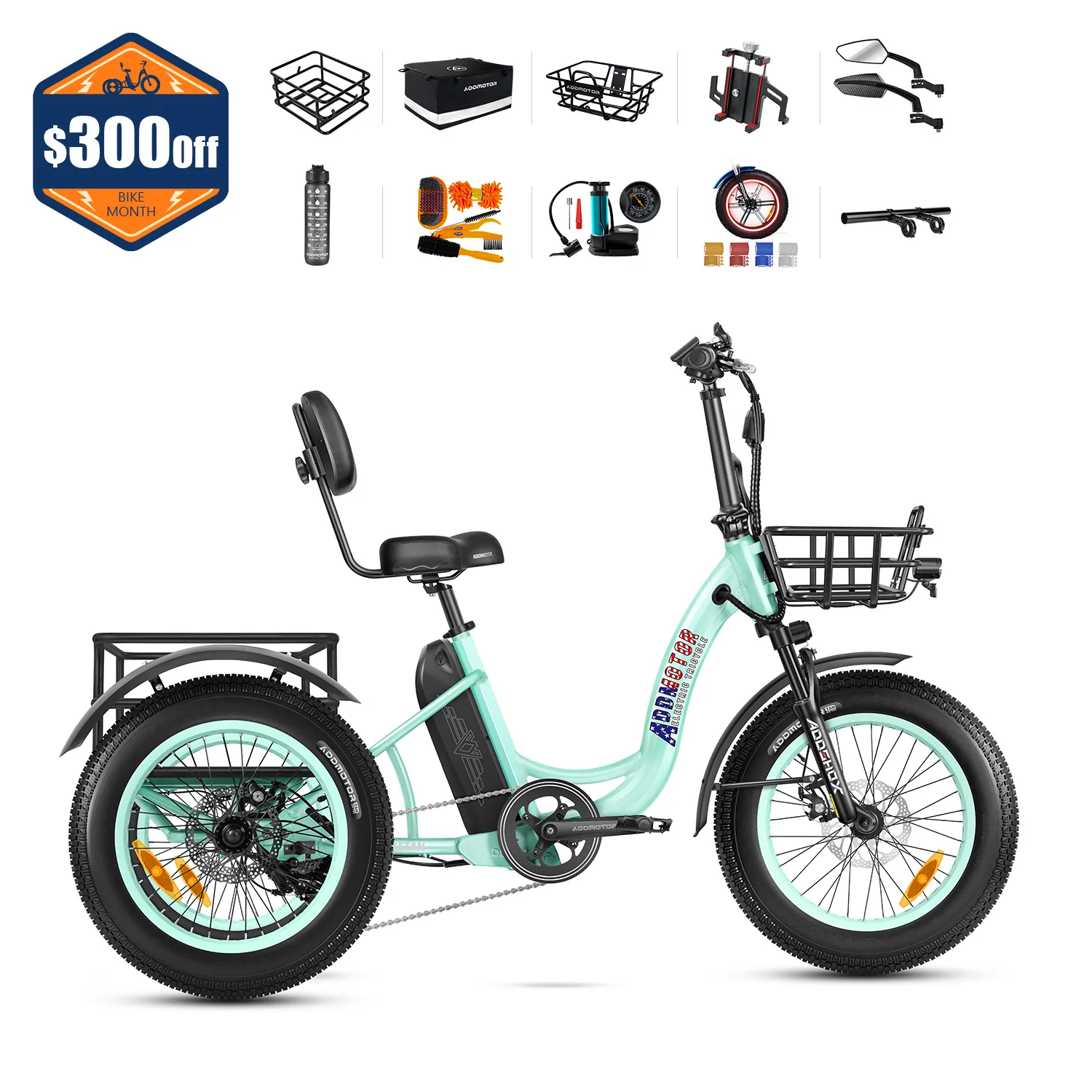

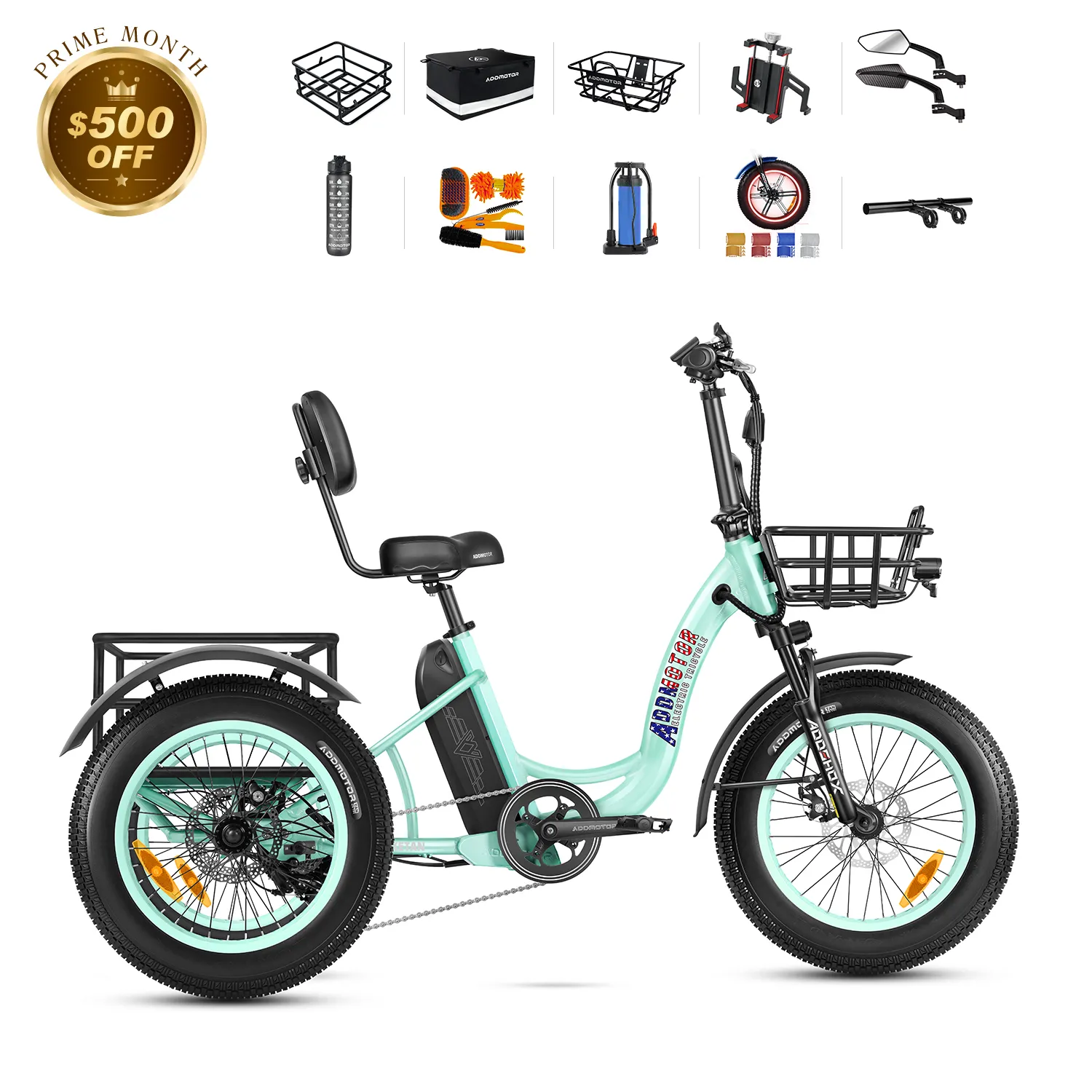

M-330 P7 Electric Fat Trike

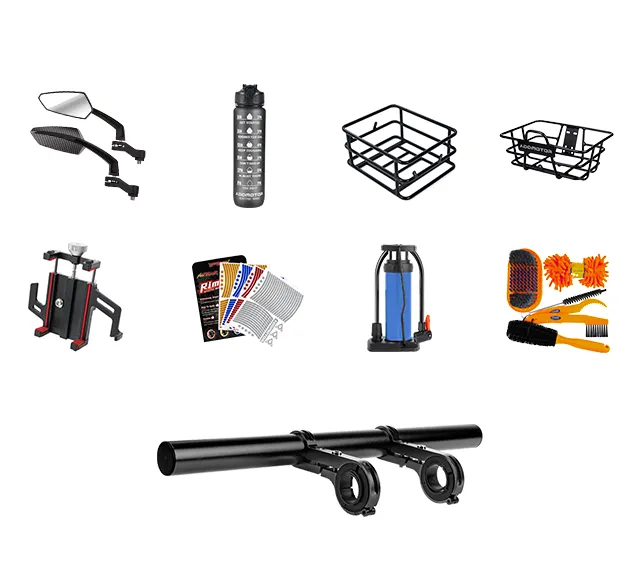

20'' Step-Thru 3 Wheel E-Bike, Rear Basket Liner, Front and Rear Fenders as Gifts

    Please select the information you wantX
  • Color:
(7 available)
I agree to the AddMotor terms of purchase
Front-Mounted Motor
Up to 55+
Miles per Charge(Estimate)
Panasonic Lithium-ion Battery
Payload Capacity

Fun Features Fun Features
Fun Features

Measurements Measurements

Video Review Video Review
Video Review

The Best Value Step-Thru Electric Trike

Stability, carrying capacity and the power to help get you where you’re going are all hallmarks of your best solution for transportation and utility. Even when we need some extra stability, we can still get out and enjoy the sense of freedom we felt that first time riding a bike. Wind in the face, fresh air and the ability to go anywhere — that’s the promise of the MOTAN M-330 P7 electric trike. The powerful Bafang motor electric system to assist your pedaling will have you traveling farther and faster than you have in years. The three-wheel stability and front-rear-mounted cargo basket give you the tools you need to get you where you’re going, easily and with peace of mind.


750W Front-Mounted Motor

A Bafang hub motor in the front wheel that can crank out a continuous 750 watts of power with the ability to ratchet things up to over 1,000 peak watts of power for hill climbs and quicker acceleration. This motor has 80 Newton meters of torque which also helps with accelerating and climbing hills, and comes in handy for muddy and sandy trails, especially for those trips to the beach.

16Ah High Capacity Panasonic Battery

The bike runs on a 48-volt system and has a 16Ah battery for an estimated max mile up to 55 with pedal assist. The battery is located on the downtube just beneath the saddle, keeping the center of gravity low and the overall weight well balanced. The battery is also locking and removable, making it easy to charge.

Integrated Headlight

Powered using the main battery pack and controlled by the display.

Integrated Brake Taillight

Powered using the main battery pack and features brake light functionality that is activated any time the brakes are applied.

7-Speed, Cassette 14-28 Tooth

7 Speed Shimano Altus Derailleur, A wider range of gearing at your disposal means more torque for treacherous uphill climbs and maintain pedal authority at top speed.

Dual Rear Brake Rotors

The bike is upgraded two rotors on the rear wheels are sensitive when a brake is required, offer you a safe ride.

Folding, Telescoping Handlebar Stem

Raise or lower the handlebar stem to your desired comfort level

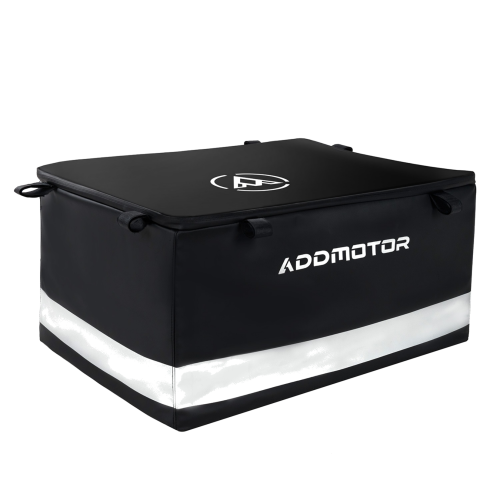

Large Rear Basket with Storage Bag

Super high capacity alloy rear basket with a waterproof storage bag for carrying items.

Technical specs
Bafang 48V*750W Front Brushless Hub Motor, 80 N·M Torque
Panasonic 48V*16Ah Cells Battery, Charging Time 4-5 Hours And Rated For 800 Charge Cycles
Addmotor 5 Inch LCD Display
Addmotor 25A Controller
Variable Speed Control - 1/2 Twist Throttle
Powered By Main Battery And Controlled By Display
Powered By Main Battery And Controlled By Display with Brake Light Functionality
Water-Resistant Connectors and Wiring Harness
Pedal Assist
5 Level Pedal Assist, Cadence Sensor

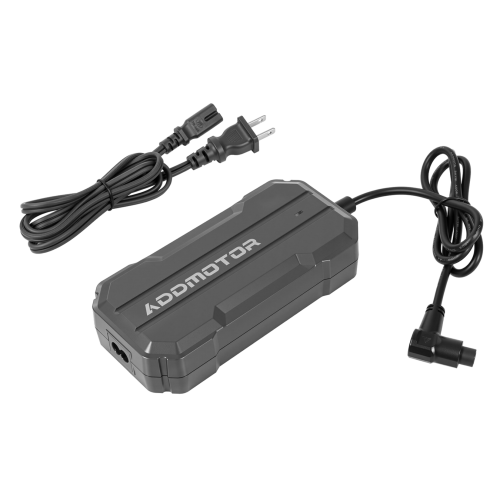

2.5A US Standard DC Smart Charger
7A19 Aluminum Alloy Frame
Front Fork
MOZO 50mm of Travel
Brake Lever
Tektro EL555-RT/EL550-RS
MD300 160mm F / SF 2*160mm Rear
KMC Rust Resistant Chain
Kenda 20" X 4.0" 30 TPI Fat Tires
Chain Puller
Shimano 7 Speed / ALTUS M310
Black Aluminum Foldable Handlebar
Seat Post
Quick Release 30cm
Front and A Rear Basket Waterproof Bag

The bike is strong enough to carry a rider whose height range of 5'2"-6'4" and payload capacity is 450lbs.
Total Length
Maximum Handlebar Height
Minimum Handlebar Height
Stand Over Height
Seat Tube
Minimum Seat Height
Maximum Seat Height
Handlebar length
Back Basket
21.6'' x 17.7'' x 9.8''
Removable Front Basket
11'' x 13'' x 5''
Video Review
Winner, Best Value Fat Electric Trike of 2021
